The performance of the Cat.5E unshielded module meets the requirements of TIA/EIA 568-C.2 and ISO/IEC11801-2002 ed2.0 for Cat.5E system, providing channel bandwidth above 100 MHz.
1. The module adopts Keystone card connection mode and has strong versatility.
2. The module body is made of high-pressure flame-retardant PC material, which meets UL 94 V-0 flame retardant requirements.

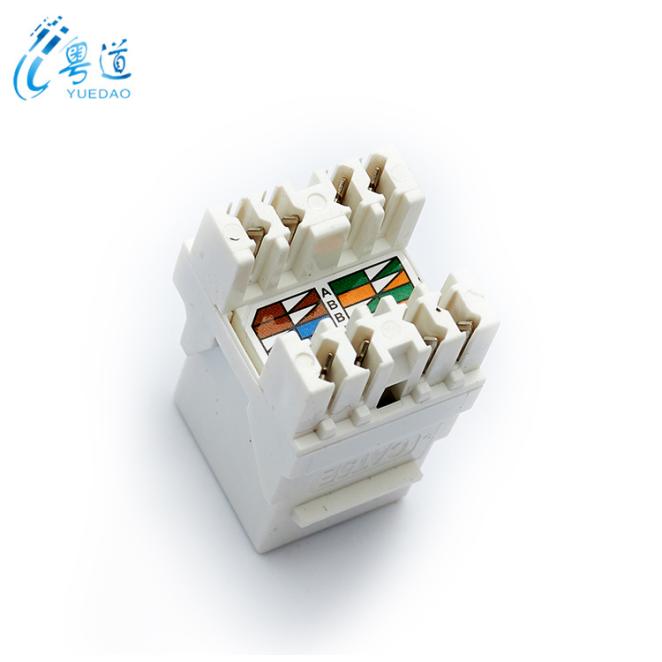

3. The contact reed and IDC terminal are all plated with tin phosphor bronze, the bottom is plated with 150u Inch, and the outer layer is plated with 50u Inch to prevent oxidation of the skin and improve the contact performance and transmission performance of the module.

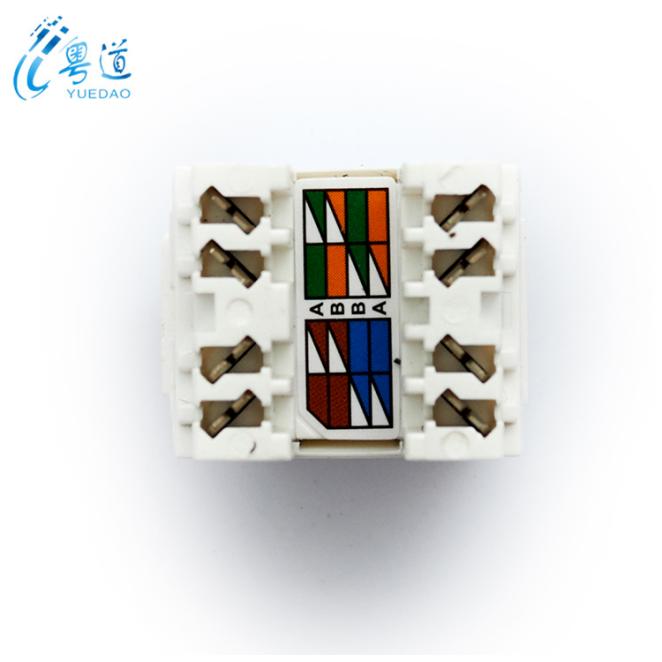

4. The unique oblique 45 degree IDC free line crimping design, the termination is firm and the construction is easier.
5. Mechanical properties: insertion force 350 g; pull-out force 150g, plug-in cycle >1050 times, termination >350 times.
6. Electrical performance: contact resistance <20 mΩ; insulation resistance > 500mΩ, maximum current <1.5A.
7. Compatible with all YUEDAO 86 type panels and 19-inch shielded empty shelves.
1. YD/T 926.2-2009
3. ISO/IEC 11801-202 ed2.0
4. ANSI/TIA 568-C.2

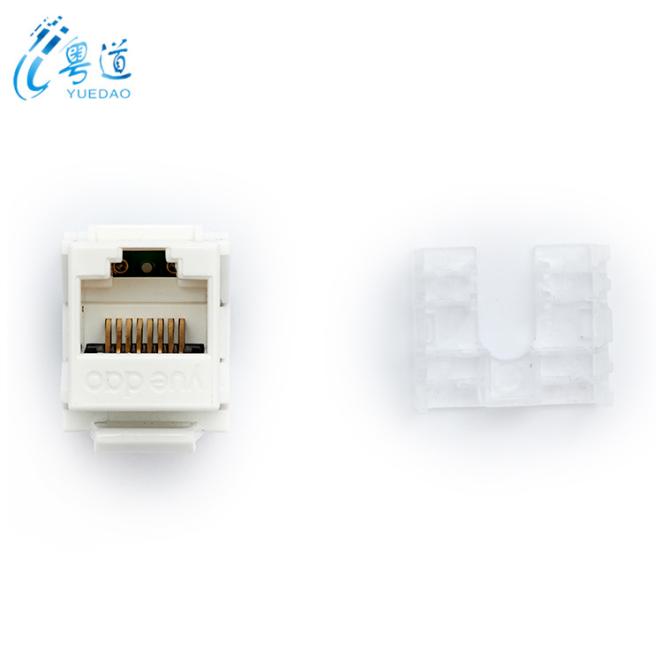

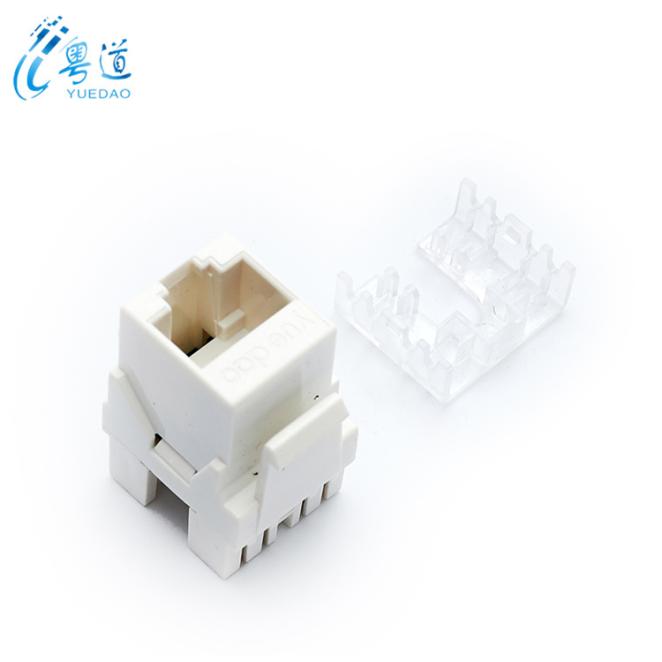

Cat.5 Eunshielded module
Note: The above is the regular color. If you need other color cables, please specify when ordering.
Q1: Are you a factory or trading company?
A1: We are a manufacturer.
Q2: Where is your factory located? How can I visit there?
A2:Our factory are located in Guangzhou city.
You can fly to Shenzhen or Guangzhou international airport. And tell us your flight No. We will arrange to pick you up.
Q3: May I buy samples from you?
A3: Yes! You are welcome to place sample order to test our superior quality and services.
Q4: What is your Warranty?
A4: All the products will have 24 months Warranty.
Q5:What payment method do you accept?
A5:T/T(Bank transfer), Western Union, Money Gram, Paypal, etc.
Q6: Can you put my brand name (logo) on these products?
A6: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the logo free for bulk orders.
Q7: May I know the status of my order?
A7: Yes .The order information and photos at different production stage of your order will be sent to you and the information will be updated in time.
Q8: What’s the leading time? (How long do you need to prepare my goods?)
A8: Delivery (no more than 1000pcs) will be arranged within 3-7 days after payment, and arrive you within about 3-7 working days via international express.
Q9: How will you deliver my goods to me?
A9: Your purchases will be delivered by DHL, UPS, FedEx, TNT, EMS your door. Air Cargo and Sea Cargo, Direct line, Air Mail also be accepted according to clients' request.
Q10: Can you provide us more other products to us to help us to save more shipping costs?
A10: Yes. There’re kinds of networking Cables, VGA Cables, rvv/rvvp Cables, telephone cables, Audio and video Cables, patch cord cables,coaxial cables will be the main products line of our Factory. The OEM bulk order will be accept as well.
